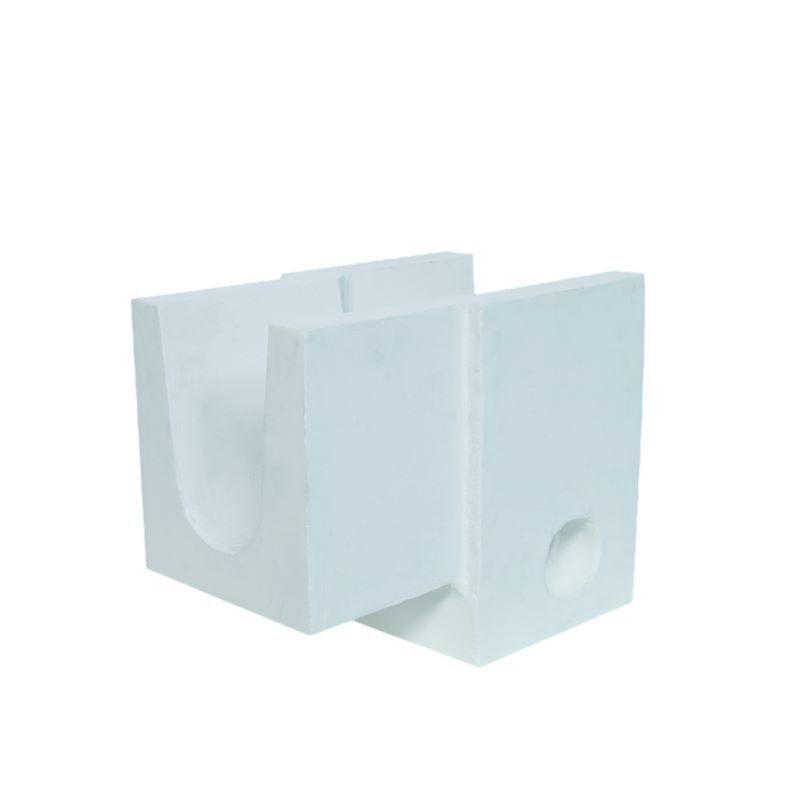

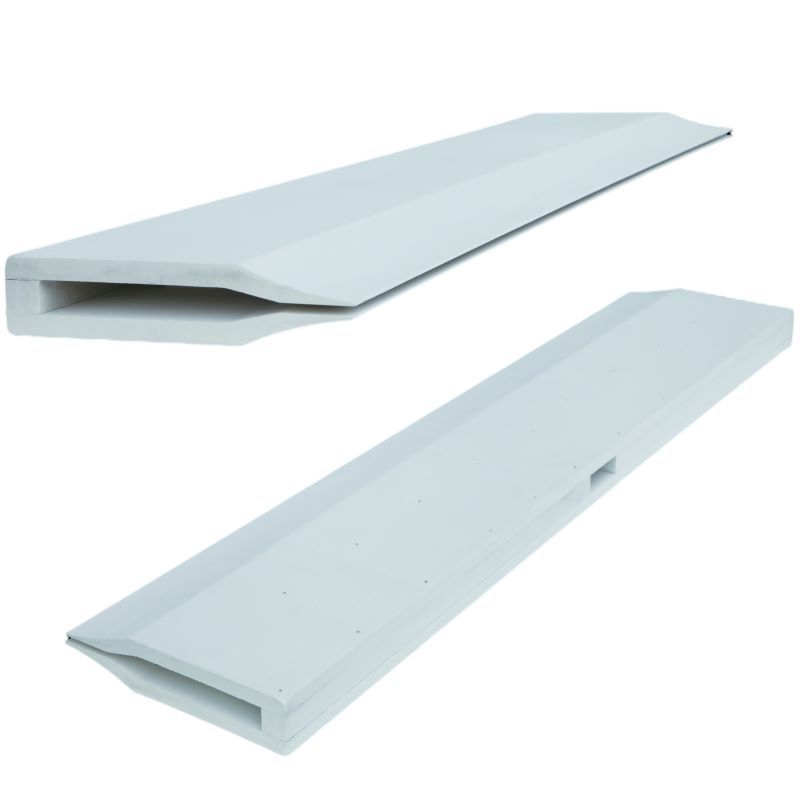

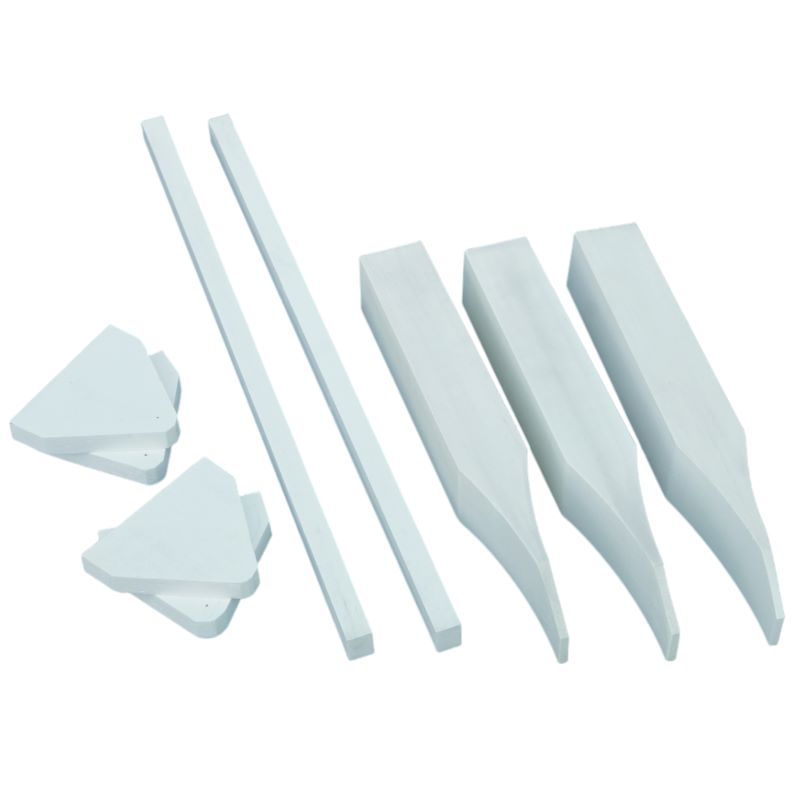

Ceramic Fiber Casting Tips For Aluminium Rolled Products

Casting tips are the key parts of the continuous aluminum trip casting machine which directly affect the quality of aluminum sheets.

Inquire Now Next Product

Introduce

Casting tips are the key parts of the continuous aluminum trip casting machine which directly affect the quality of aluminum sheets. The Traditional Continuous Sheet Casting Tips can be divided into many types according to different casting machines.

Casting tips by our plant are compounded by ceramic fiber and some other refractory materials. The opening surface and the coating of the working surface are smooth and they can be resistant to the corrosion of the liquid aluminum, guaranteeing the purity of the aluminum sheets.

Casting tips with excellent non-wetting properties, low thermal conductivity, high-temperature stabilities, uniform density, smooth surfaces, and close tolerance, are superior products for continuous aluminum strip casting.

Advantages

1. High pure Al-Si material;
2. High hardness, non-stick aluminum, smooth surface, satisfying insulation
3. Ware resistance, non-deform, good protection for sheet surface.

Data Sheet

Density	0.45～0.50g/cm3
Thermal conductivity	< 0.12W/m.k ( 700℃)
Temperature	< 1250℃
Compressive strength	> 0.16MPa
Flexural strength	> 0.06MPa
Coefficient of thermal expansion	2.77×10-6（700℃，m/m. ℃）
Burst factor	17.2～20.7N/mm2

Application

Casting tips are the key parts of the continuous aluminum trip casting machine.

Packing

In plywood cases.
