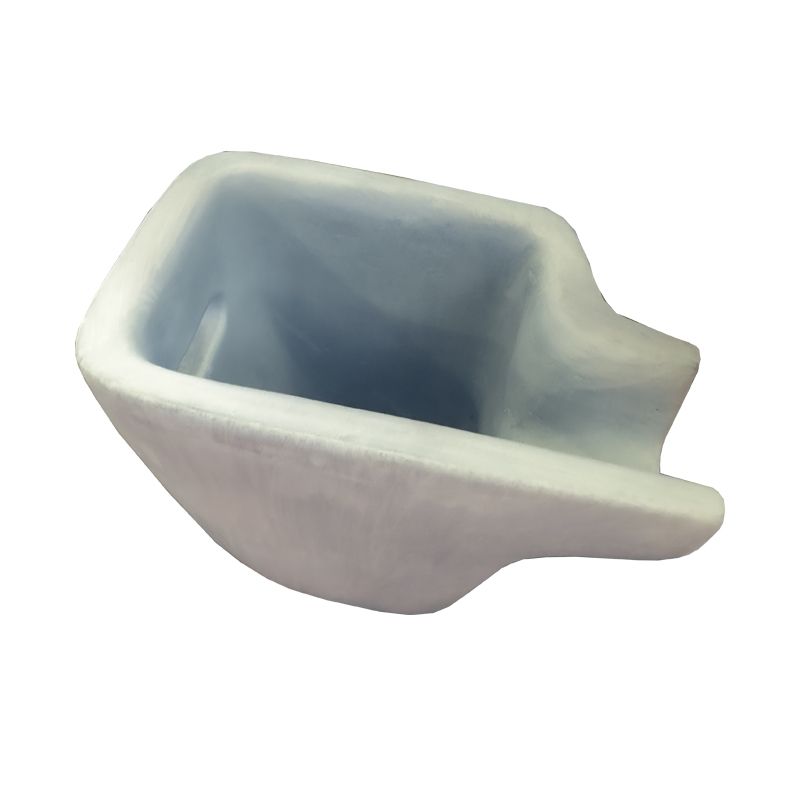

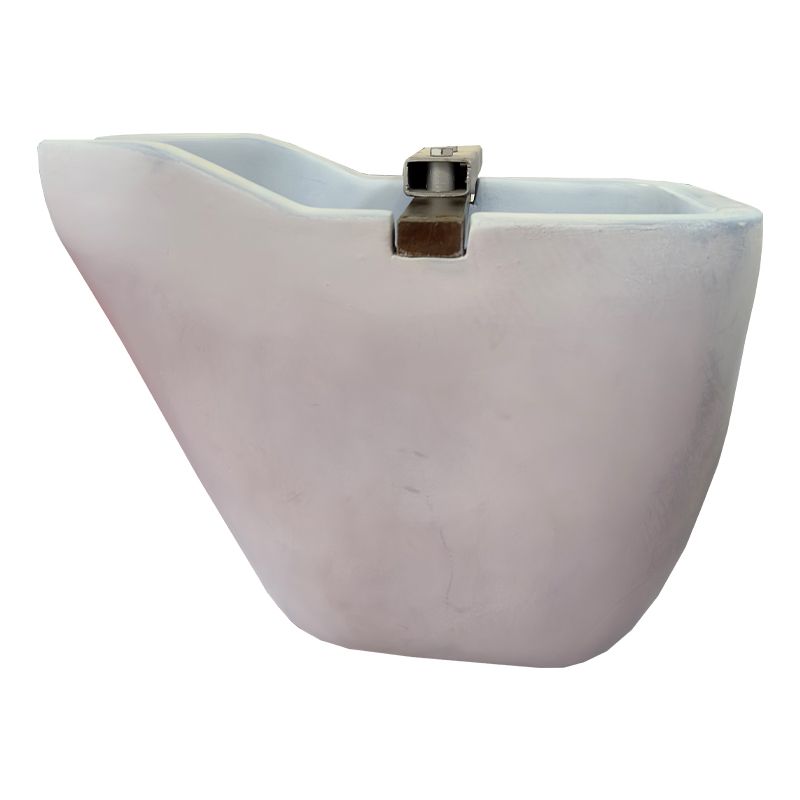

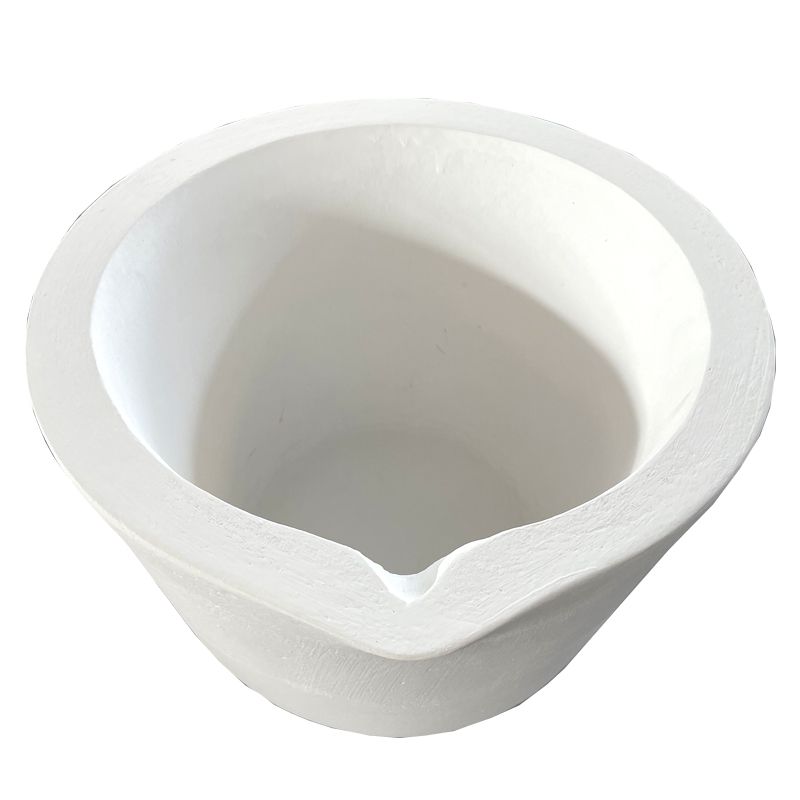

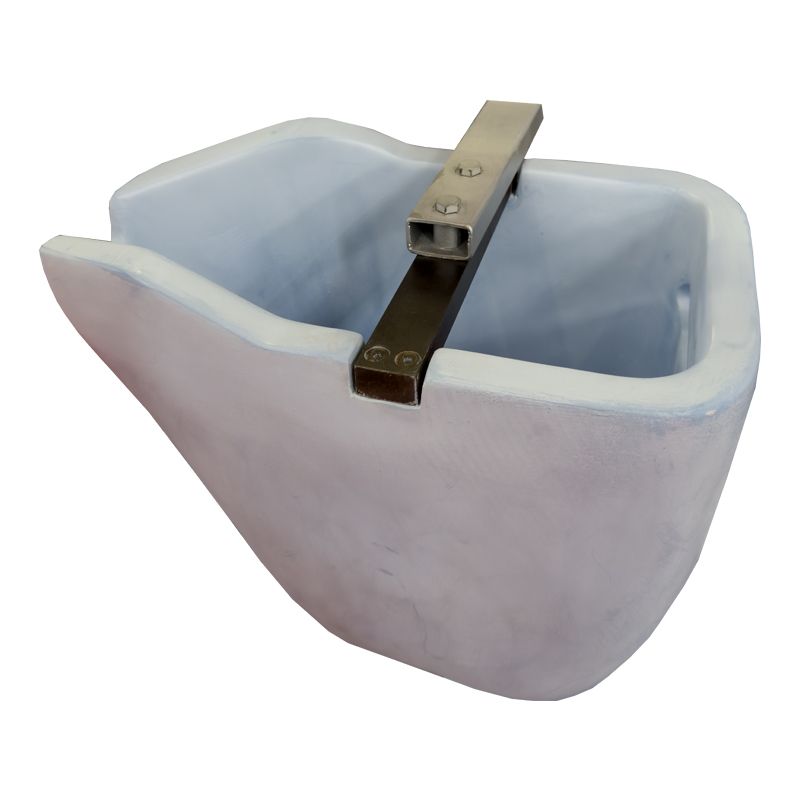

Ceramic Autopour ladles Ladles For Foundry Die Casting, high pressure, gravity casting, and sand casting.
Introduction
The autopour ladles have the advantages of good thermal insulation performance, low maintenance cost, and cold start. We design automatic mechanical bottom brackets that can meet the requirement of most customers. This new material has excellent wear resistance and thermal insulation. As a material with a density of 1600kg/m3, the ceramic casting ladle shows a special strength and density ratio.
The surface of the casting ladle with coating of boron nitride has the characteristics of non-stick aluminum, thereby enhancing the performance of the ceramic pouring ladles.
Data Sheet
| Density | 1600 kg/m3 |
| Max. Temperature | 780°C |
| Thickness | 8-25mm |
| Rupture Modulus | 21.4Mpa |
| Thermal Expansivity | 0.9mm/mm/°C/X10-6 |
| Thermal Conductivity | 0.43W/(m.K)@750 °C |
Advantages
1. Low thermal conductivity
2. Excellent heat-shot resistance
3. High erosion resistance
4. No-wetted by molten aluminum
Application
AutoPour ladles are used for area of high pressure die casting, gravity die casting and sand casting.
Packing
In plywood case
