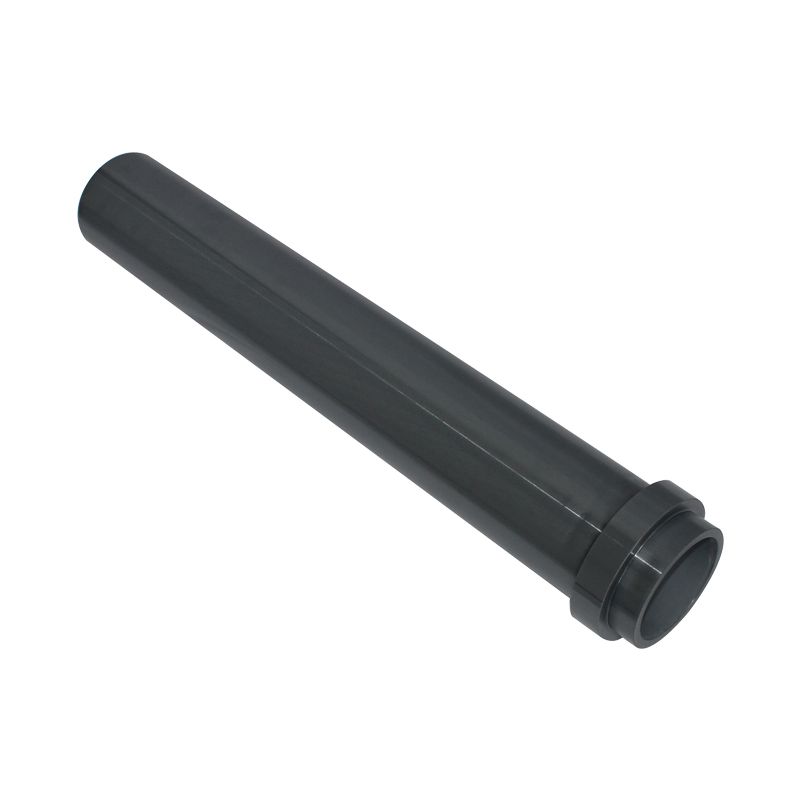

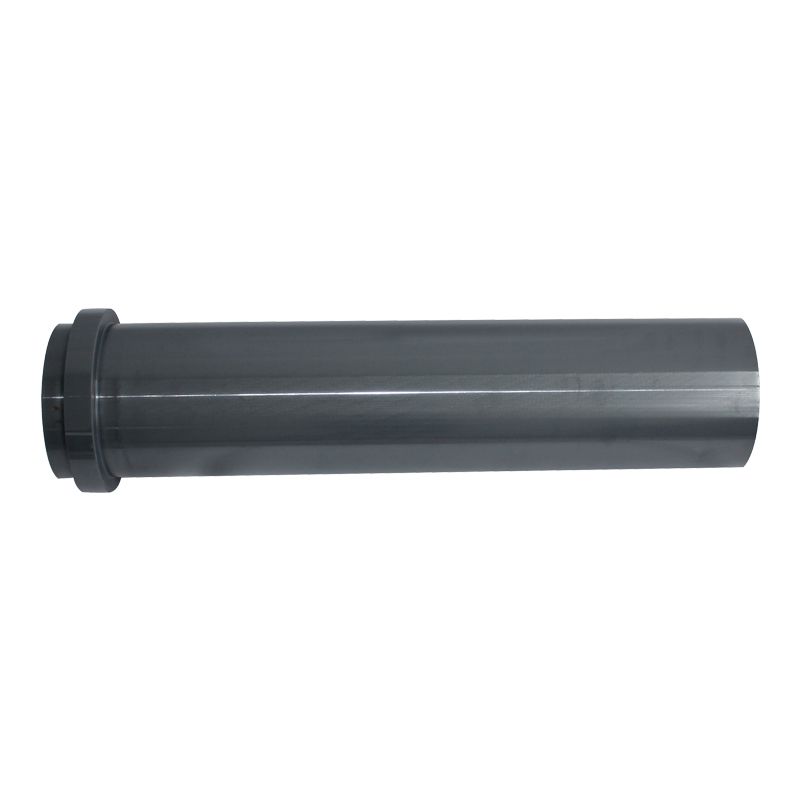

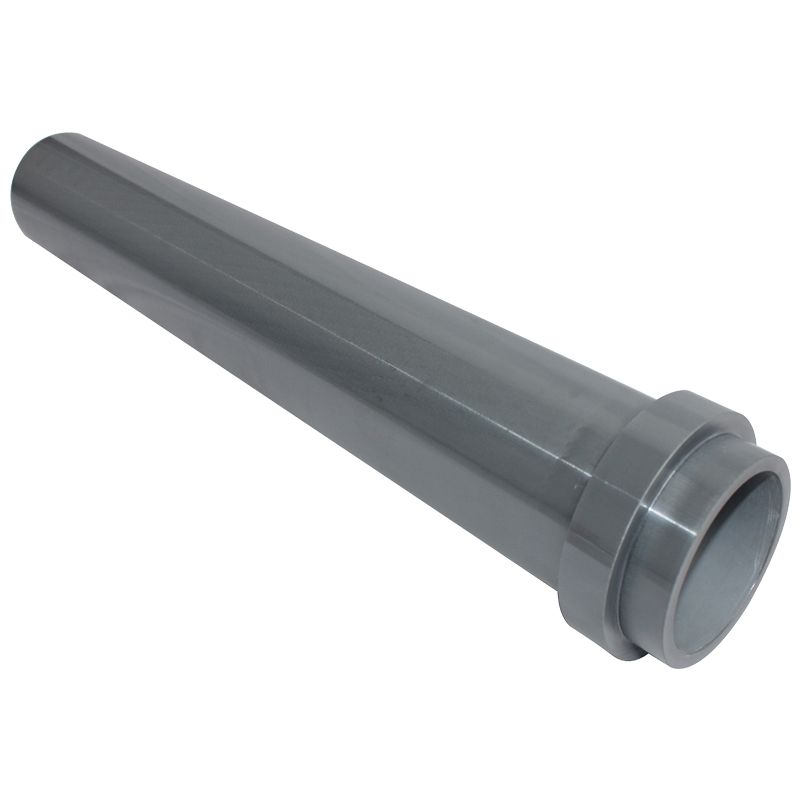

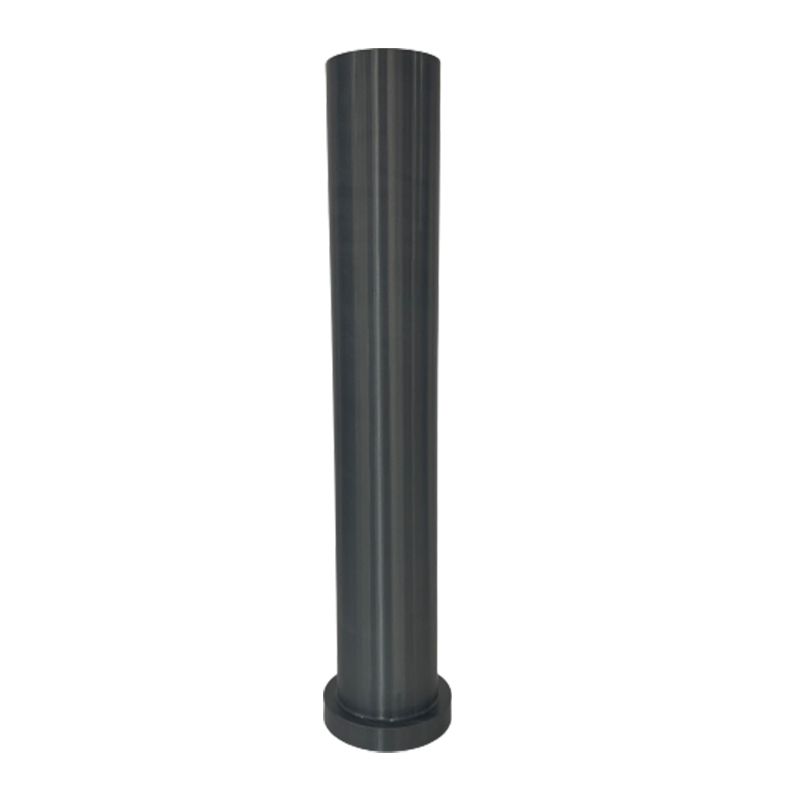

Silicon Nitride Riser Tube is the key part of low pressure die casting machine.
Introduce
Silicon nitride (Si3N4) ceramic materials are widely used in manufacturing, aerospace, chemical, armor, and other fields because of their high strength, wear resistance, corrosion resistance, and other properties. Using the appropriate sintering additives can effectively improve the thermal conductivity, the fracture toughness and promote the improvement of material properties.
With these performances, silicon nitride is a good material for riser tubes.
The Advantage Of Silicon Nitride Riser Tube
1. Small thermal expansion coefficient;
2. Good thermal conductivity and good thermal shock resistance
3. good thermal shock resistance
The Data Sheet Of Silicon Nitride Riser Tube
| Density | 3.20±0.04g/cm3 |
| Apparent porosity | ＜0.3% |
| Elastic modulus | 300-320GPa |
| Compression strength ratio | 35-45% (25C) |
| Hardness(HRA) | 92-94Gpa |
| Fracture toughness | 7 0-9 0/Mpa m½ |
| Bending strength | 800- 1000MPa |
| Poisson’s ratio | 0.25 |
| Webuller modulus | 1 1- 13 |
| Thermal conductivity | 22-24W.(m.k)- 1 |
| Corrosion resistance | Good |
| Size stability | Good |
| Magnetic | No |
Application
For low-pressure die casting machines.
Packing
In plywood case with foam
